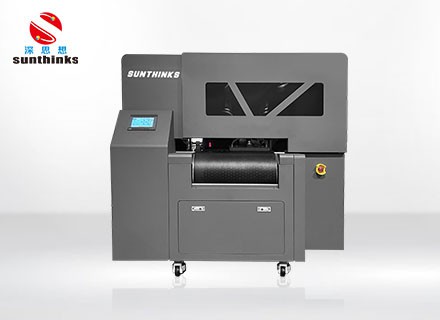

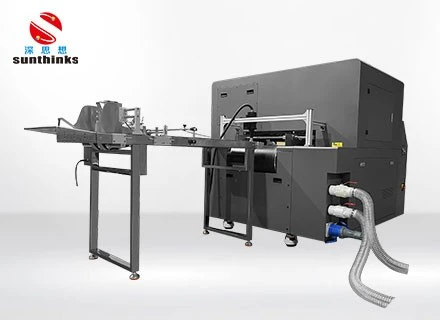

Our single pass UV printer is designed based on industrial-grade manufacturing standards, focusing on the balance between efficient production and stable output, providing reliable large format printing solutions for enterprises of different sizes. The following is an explanation of the technical architecture and functional features:
Technical Architecture Features
Integrated Print Engine
The device adopts a single-pass scanning structure, ensuring the stability of the printing unit in high-speed movement through a highly rigid gantry. The modular print head group supports quick replacement and maintenance, with the closed ink supply piping design to minimize external environmental interference.
Intelligent Media Handling System
Built-in adaptive pressure paper mechanism, can automatically identify the 0.5-50mm thickness range of rigid/semi-rigid media, through the pneumatic clamping and vacuum adsorption of dual-mode switching, to protect the positioning accuracy of the printing of shaped workpieces.
Dynamic Curing Control Unit
Equipped with multi-band UV light source array, according to the media moving speed intelligent adjustment of light intensity and irradiation angle, to achieve uniform curing of the ink layer. Special heat dissipation air duct design to ensure that the equipment in the continuous working state of the light source attenuation rate of ≤ 1% / 100h.
Advantages of Production Function
Streamlined Process
A single pass to complete the full-width printing, avoiding the splicing errors of traditional multi-channel equipment, especially suitable for 1.2 × 2.4m standard plate processing.
Consumables Management Optimization
Intelligent ink prediction algorithm predicts ink consumption based on pattern coverage, triggers a low ink warning 12 hours in advance, and works with the secondary ink bladder buffer system to realize non-stop ink refilling.
Color Consistency Control
The closed-loop color management system monitors the ink deposition in real time and automatically compensates for the color deviation caused by changes in ambient temperature and humidity, ensuring that the ΔE of the same batch of products in mass production is ≤1.5.
Industrial Environment Adaptation
The protection level reaches IP52 standard, which can be stably operated in the regular workshop environment with the temperature of 15-35℃ and humidity of 30-70%RH, and the vibration tolerance meets the ISO 10816-3 Class B specification.
Typical Industry Solutions
Building Decoration Field
Realize the personalized pattern direct printing of tiles, glass partitions and other building materials, support marble texture, geometric patterns and other complex designs of one-key output to meet the needs of engineering customization.
Industrial packaging proofing can complete the physical effect presentation of packaging samples, support reverse UV, local relief and other special effects process, shorten the design verification cycle.
